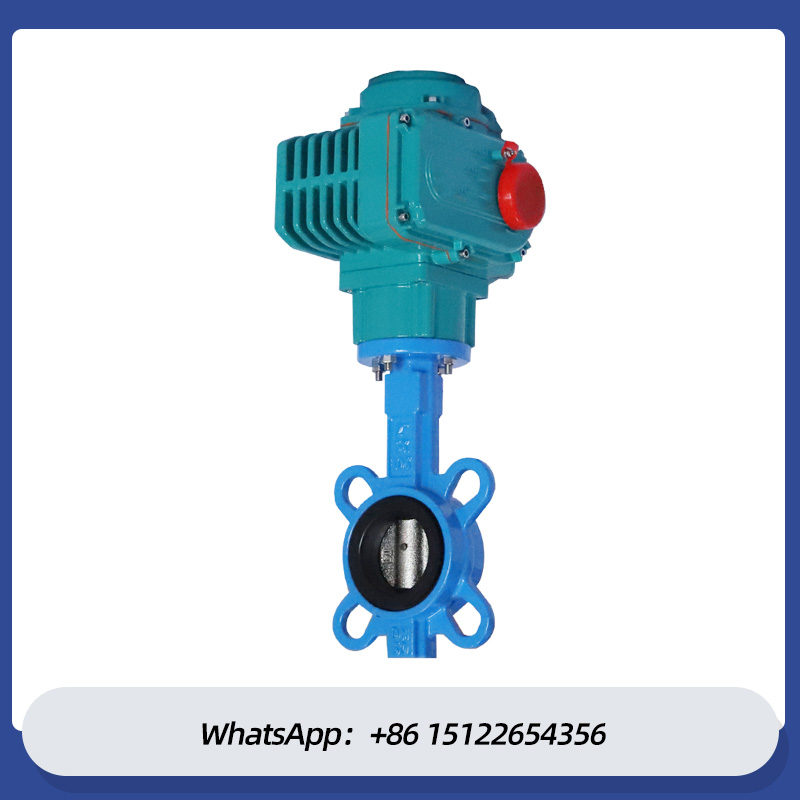

Electric Butterfly Valve 220V DN50 Electrical Actuator PVC/UPVC/CPVC Butterfly Valve Motorized Wafer Butterfly Valve

                                                   TECHNICAL PARAMETER

Motorized wafer butterfly valve is a kind of valve widely used in pipeline system. It has the advantages

of simple structure, easy operation, small size, light weight and stable performance. It is usually composed

of a valve body, a valve plate and an electric actuator, through which the valve plate switch is driven to

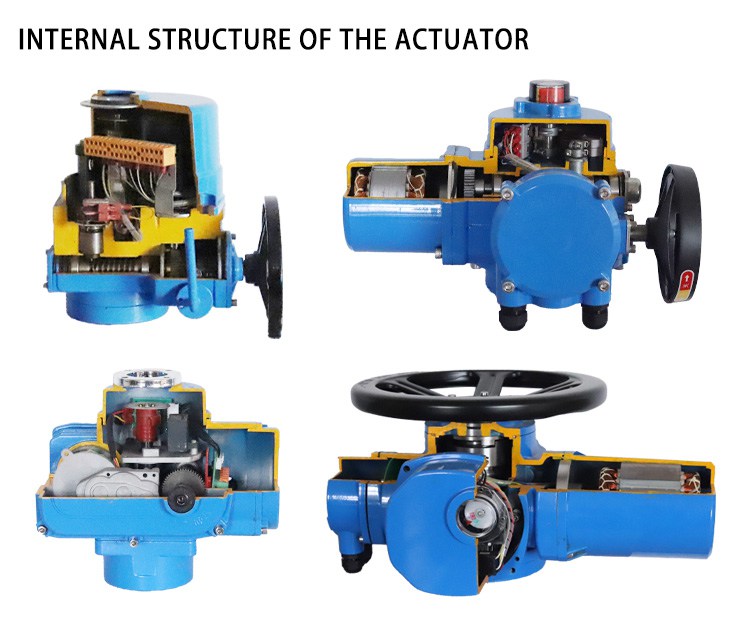

achieve the purpose of controlling the fluid flow in the pipeline.The working principle is: when the motorized

actuator receives the control signal, it will pass the rotating motion to the butterfly valve disc through the worm

gear transmission mechanism, so that it can rotate in the pipeline, so as to realize the switch control of the

pipeline fluid. At the same time, the motorized actuator can also transmit the opening signal of the valve

to the control system through the feedback device to achieve remote monitoring and control.

Alllikevalve provide one-stop solutions

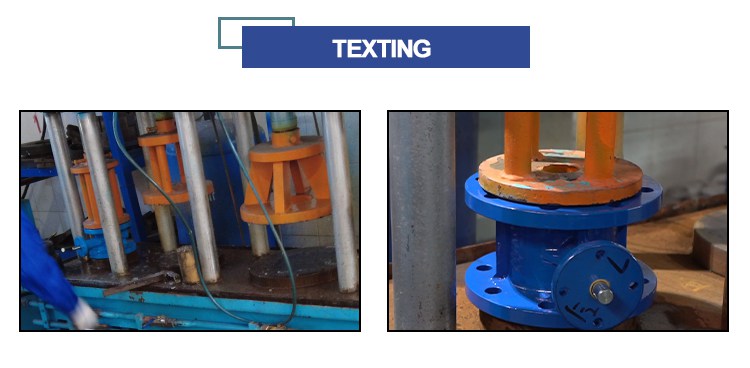

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test,

pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes
