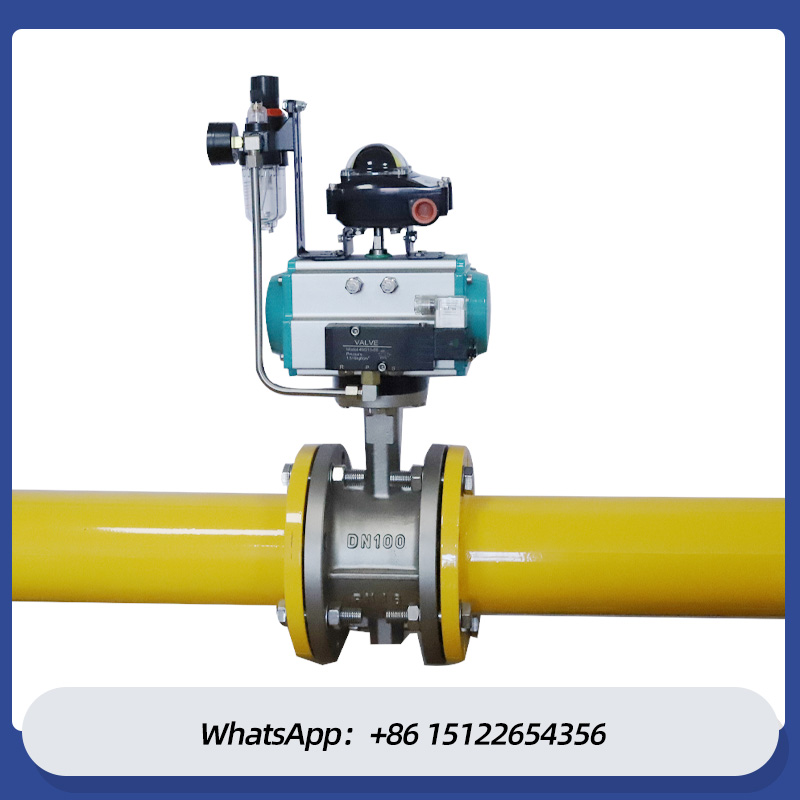

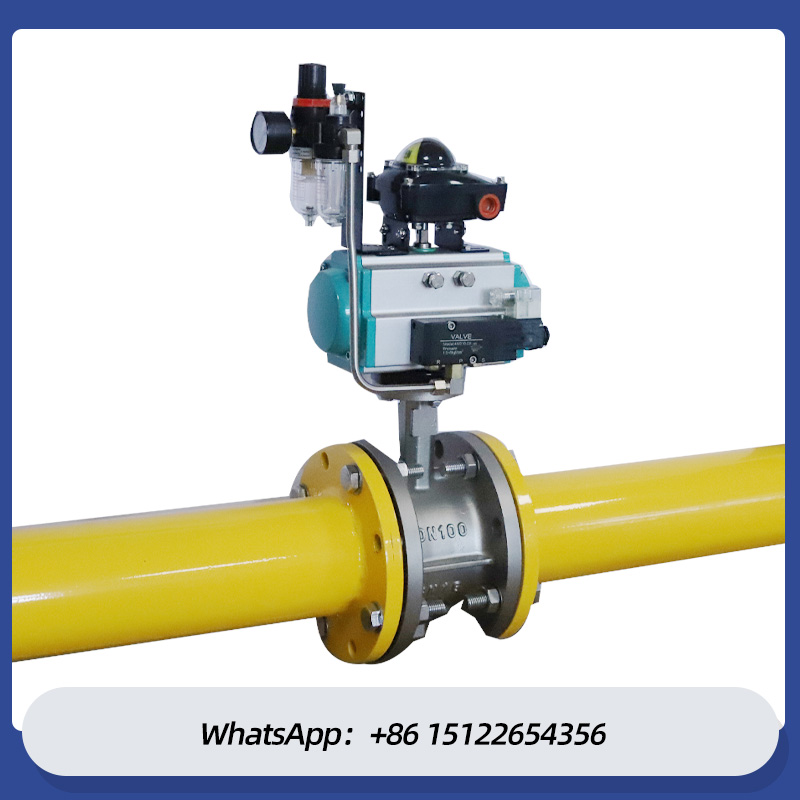

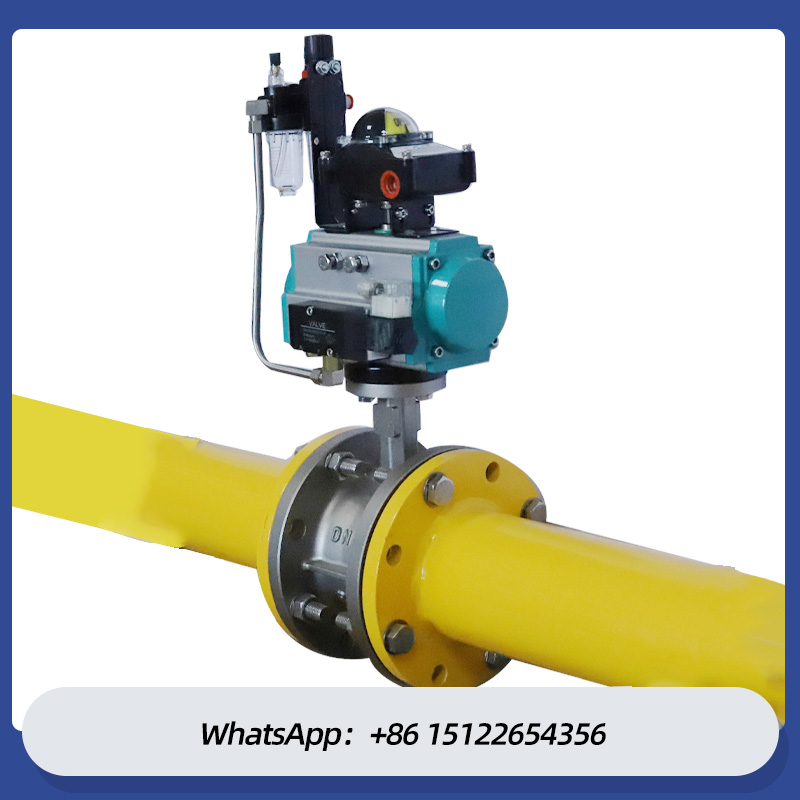

Stainless steel SS304 SS316L Sanitary Pneumatic Flange Butterfly Valve

As an important fluid control device, pneumatic flanged butterfly valve is widely used in chemical,

petroleum, metallurgy and other fields.

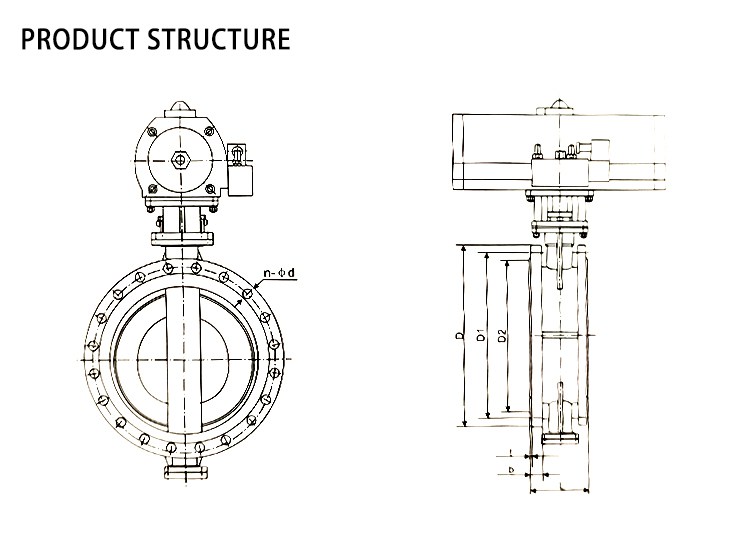

The pneumatic flanged butterfly valve is composed of a body, a disc, a stem, a seat and a driving device.

Its most notable feature is the unique shape of the valve disc, similar to the shape of a butterfly, hence

the name butterfly valve.

The disc of the butterfly valve can be freely rotated in the pipe, and the flow of the fluid can be adjusted

by changing the rotation Angle.

In addition, the flange butterfly valve also has the characteristics of simple structure, light weight, easy

installation, etc., which makes it widely used in the industrial field.

The working principle of the pneumatic flanged butterfly valve can be simply divided into two steps:

opening and closing.

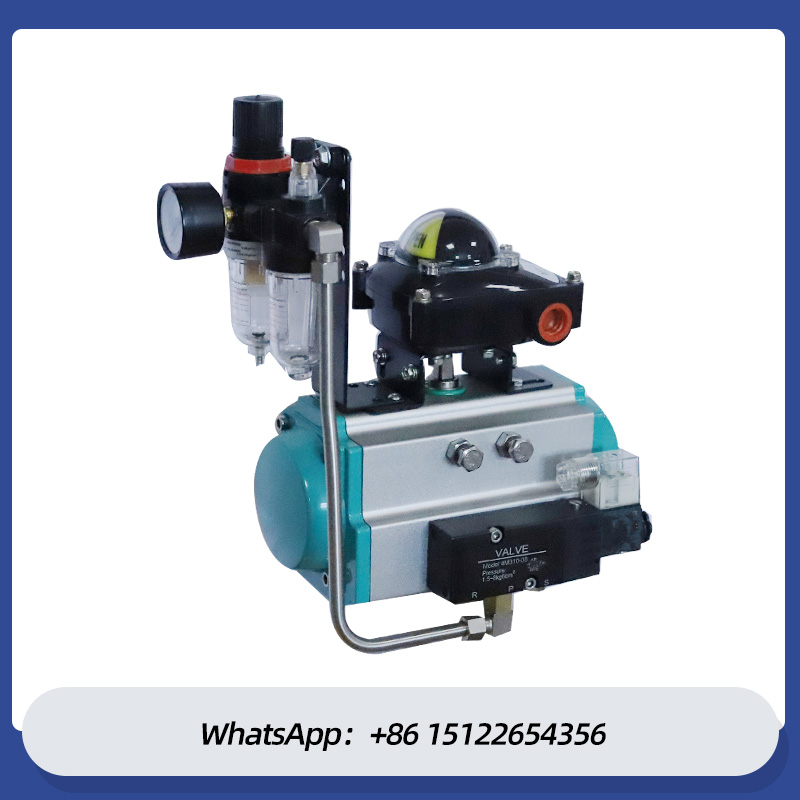

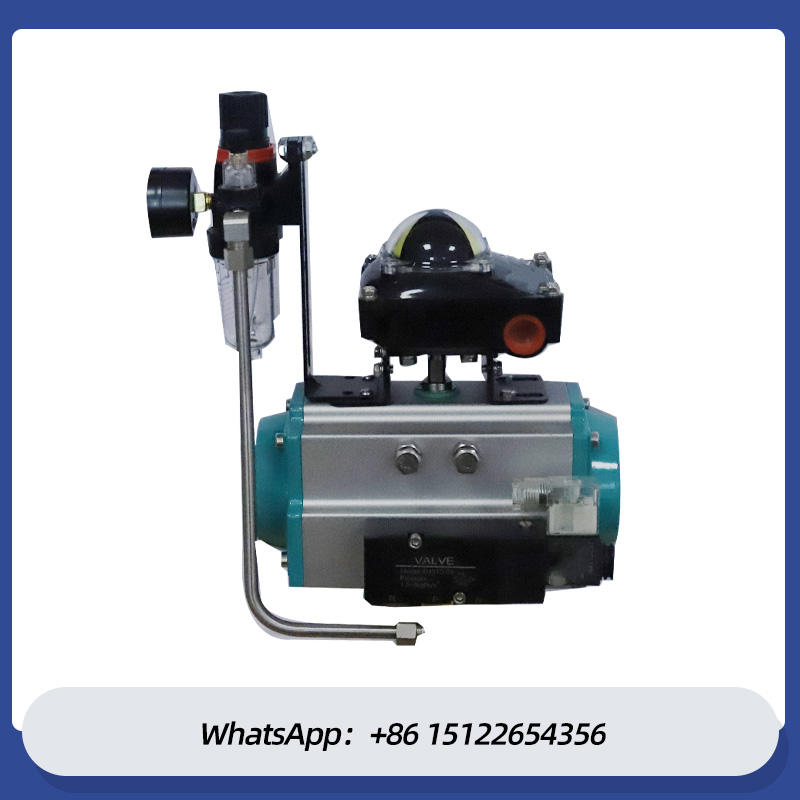

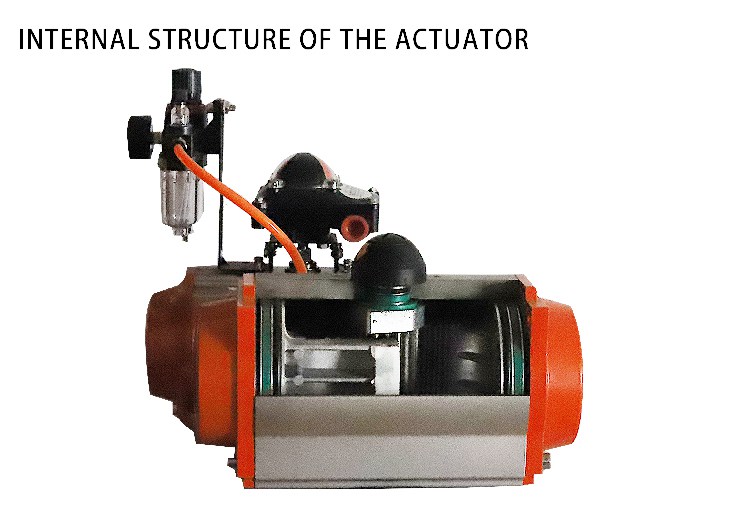

When the valve is opened, the drive rotates the valve to an Angle through the air pressure, so that the

fluid can pass smoothly.

When the valve is closed, the drive rotates the valve perpendicular to the pipe, preventing the passage

of fluid.

7*24hours service on line pneumatic valve suppliers, Alllikevalve provide one-stop solutions

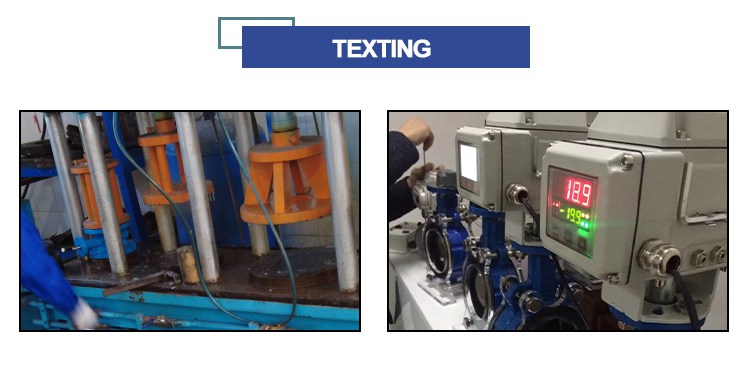

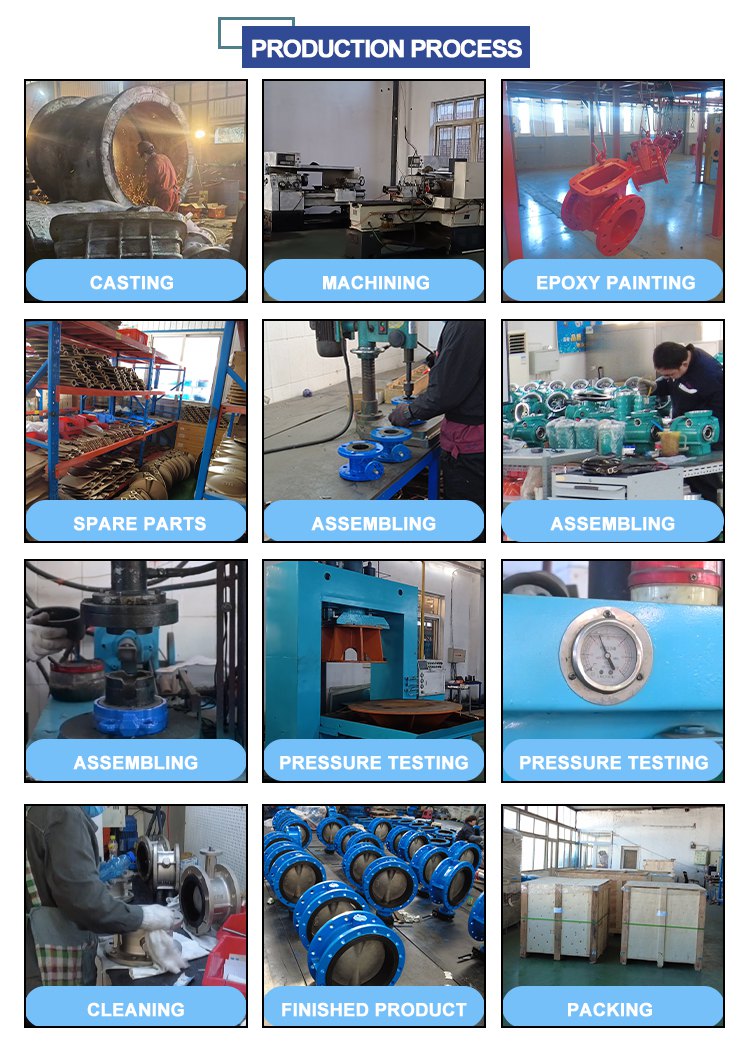

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg

shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure

test: test pressure 17.6 kg; Hold the pressure for 2 minutes
