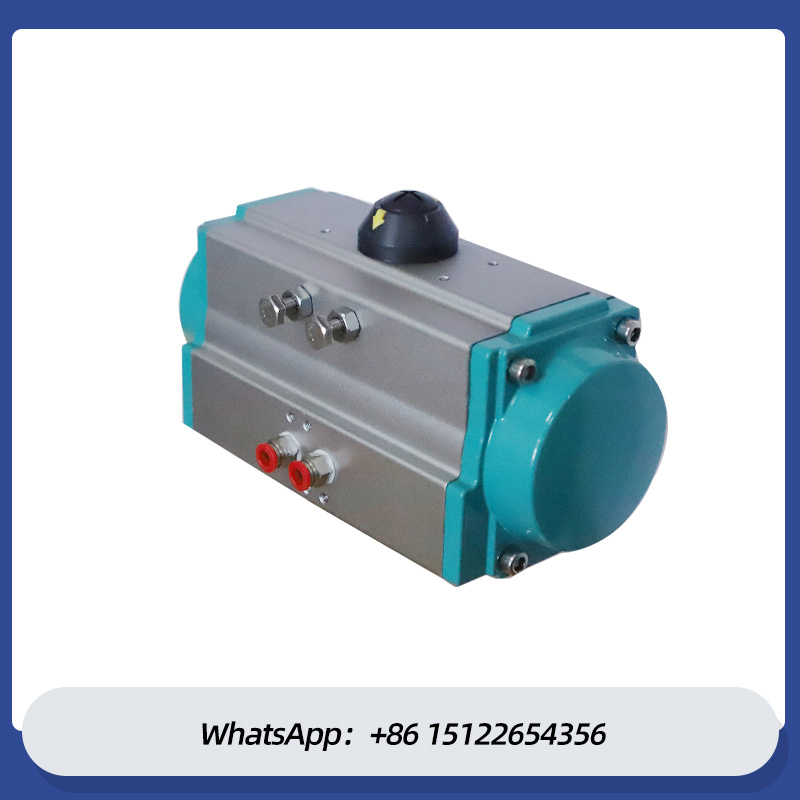

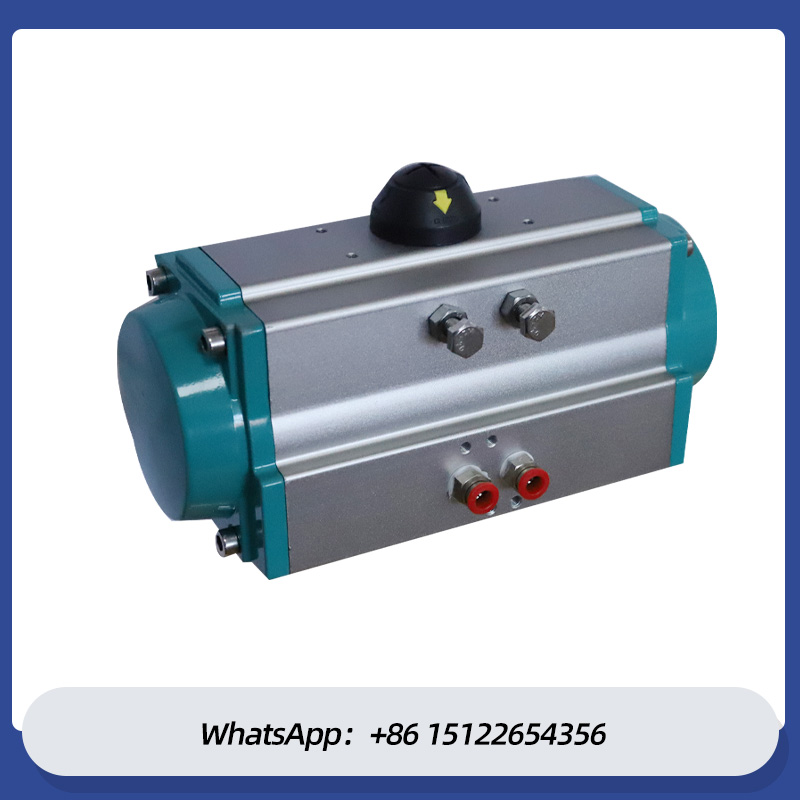

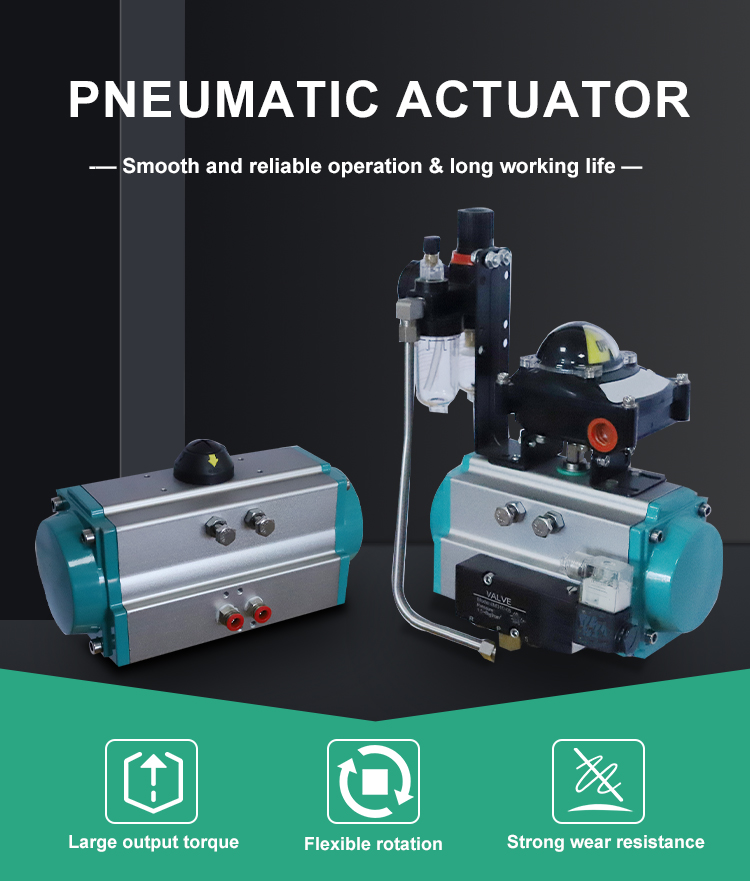

AT32 Pneumatic Actuators Double and Single Effect Rotary Actuator Pneumatic Actuator

The pneumatic actuator is an actuator that converts the input pressure signal to 90 degrees and then outputs it in the form of a torsion rectangle. Is a small appearance, high performance of the executive structure, divided into dual gas control type and single gas control type two, and angular stroke type control valve combination can be used for adjustment and switching occasions, can also be used for other rotary movement occasions.

(1) Extruded aluminum alloy cylinder, hard oxidation treatment, hard surface texture, strong wear resistance

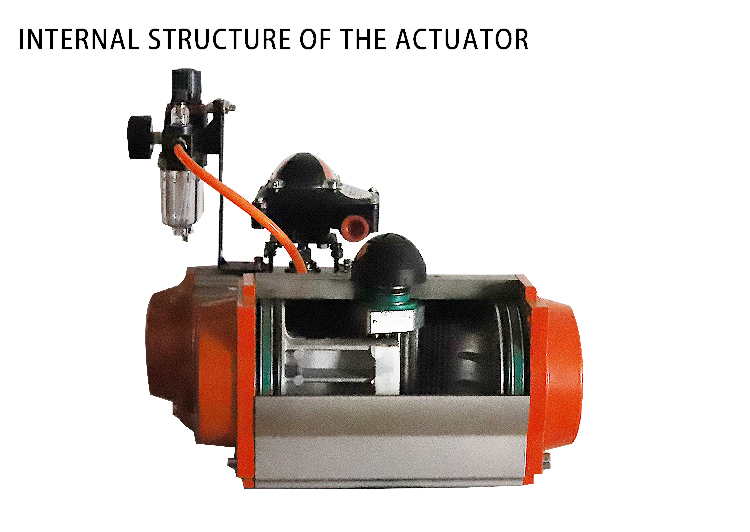

(2) Compact double piston gear, rack type structure, smooth transmission, symmetrical installation position

(3) Cylinder block, end cover, output shaft, spring, fasteners, etc. are treated with anti-corrosion

(4) The spring of the mono-controlled actuator is installed after preloading, which can be safely and conveniently disassembled and assembled

(5) The pneumatic actuator in the full open and full closed position can be 0 degrees or 90 degrees plus or minus 5 degrees two-way stroke adjustment

(6) Beautiful and compact appearance, light weight, with waterproof sealing structure
