Double-Acting SS304 DN50 Water Connection Pneumatic Valve With Actuator Valves Product

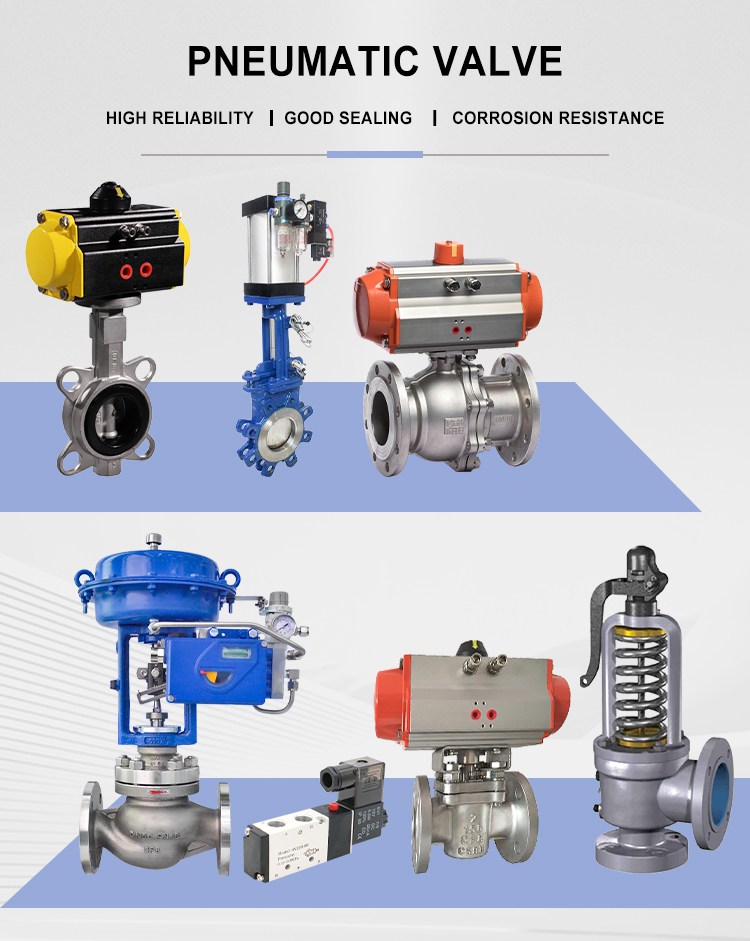

What is a pneumatic valve ?

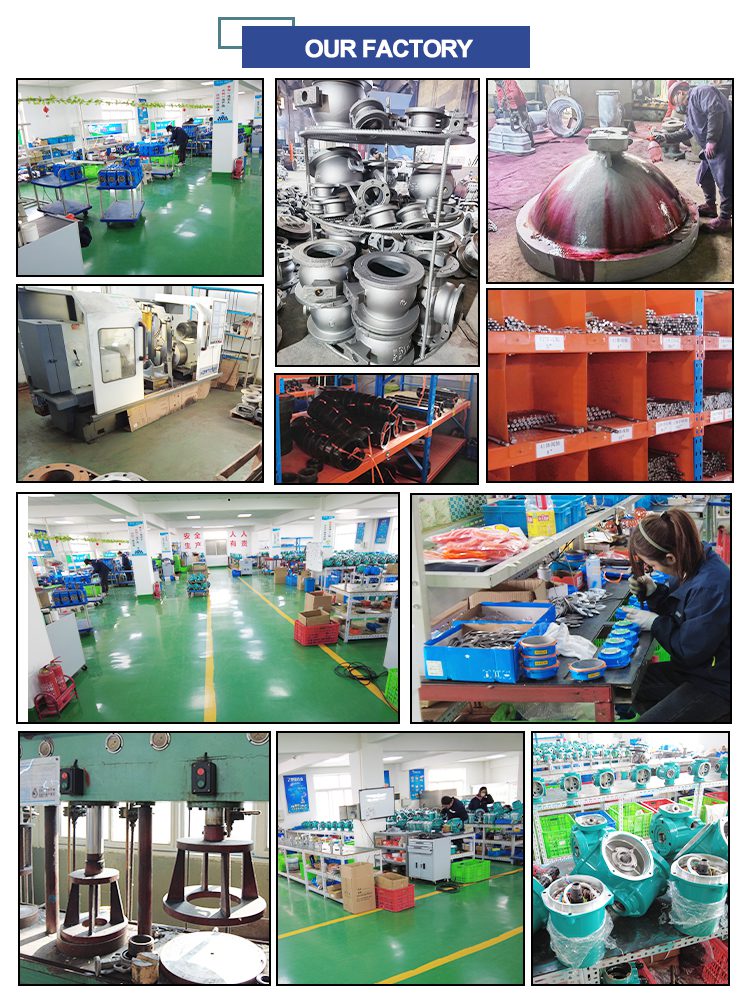

We are a pneumatic valve manufacturer and supplier. Our actuated valve factory is located in Tianjin, China. Specializing in the production of pneumatic valves.

Pneumatic valve is a kind of compressed air to drive the valve switch, with fast, efficient, safe and reliable, energy saving and other advantages, widely used in petroleum, chemical, electric power, metallurgy and other fields.

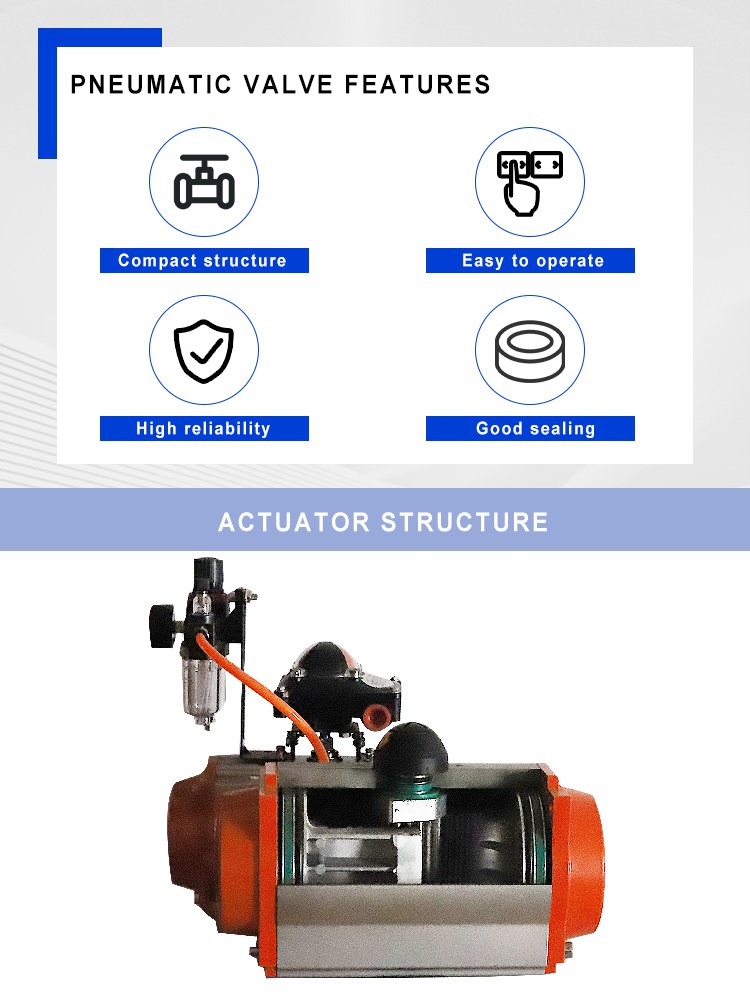

Pneumatic valve structure

Pneumatic valve is mainly composed of valve body, valve disc, seal, actuator and control system. Among them, the actuator is the core component of the pneumatic valve, which is composed of the cylinder, piston, connecting rod, etc., which can convert the energy of the compressed air into mechanical energy and push the valve disc to switch action.

Working principle of pneumatic valve

The working principle of the pneumatic valve is to control the compressed air through the control system to make the actuator switch action. When the compressed air enters the cylinder of the actuator, the piston moves downward under pressure, driving the connecting rod to make the valve disc switch action. At the same time, the control system can precisely control the opening speed and position of the valve by adjusting the opening and time of the intake and exhaust ports.

1. Compact structure: Pneumatic valve adopts compact design, simple structure, easy installation and maintenance.

2. Easy operation: pneumatic valve can be operated by pneumatic actuator, easy operation, remote control and automatic control can be achieved.

3. High reliability: The pneumatic valve uses high-quality materials and manufacturing processes, has high reliability and stability, and can adapt to a variety of harsh working environments.

4. Good sealing: pneumatic valve adopts advanced sealing technology to ensure good sealing performance and prevent medium leakage.



5.Strong corrosion resistance: pneumatic valves are made of corrosion-resistant materials and can adapt to various corrosive media.

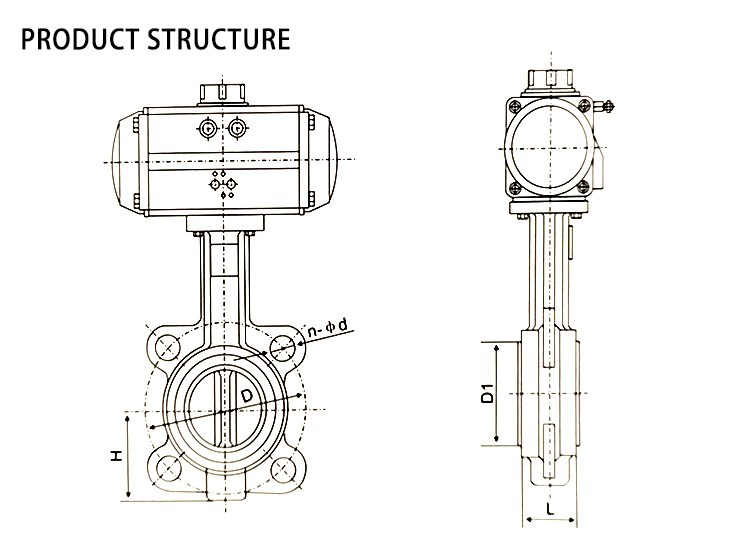

Pneumatic butterfly valve



Optional function of pneumatic actuator	Double acting, single acting
Solenoid valve voltage	AC110V AC220V AC24V DC24V
Air source pressure	2bar-8bar
Nominal diameter	DN25mm~DN1200mm
Nominal pressure	PN1.0Mpa~PN1.6Mpa
Applicable temperature	EPDM:-30~+100℃ PTFE：-30~+120℃
Connection mode	Wafer
Valve body material	Ductile ink, carbon steel, stainless steel, nylon
Valve disc material	Spherical ink, 304, 316, 316L, 2507, 1.4529, copper plate, etc
Valve seat lining	NBR、EPDM、PTFE
Applicable medium	Water, gas, slurry, oil, etc

The pneumatic butterfly valve is a device composed of a pneumatic actuator and a butterfly valve, which realizes the opening and closing action by a circular butterfly plate rotating with the valve stem. It is mainly used for cutting the valve, and can also be designed to have the function of adjusting or breaking the valve and regulating. ‌ ‌

The pneumatic butterfly valve is more and more widely used in the low pressure medium and large diameter pipeline, and its structure is simple, small size, light weight, especially suitable for installation in the high altitude tunnel.

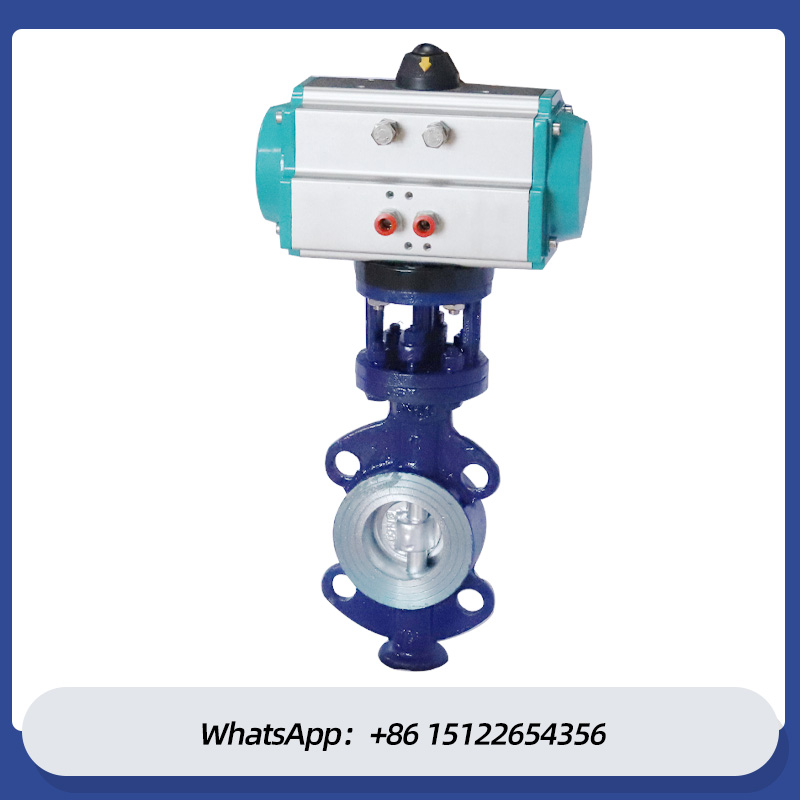

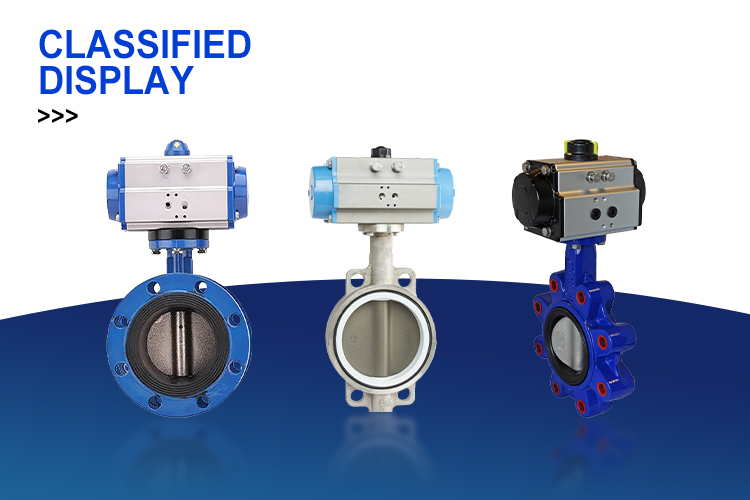

Pneumatic wafer butterfly valve

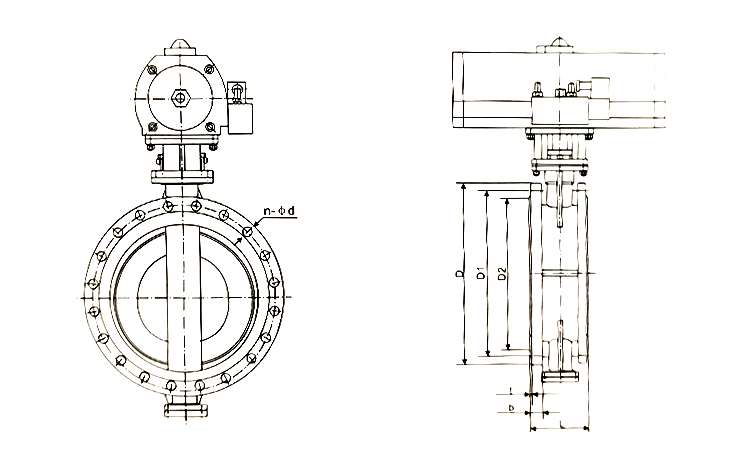

Pneumatic flange butterfly valve

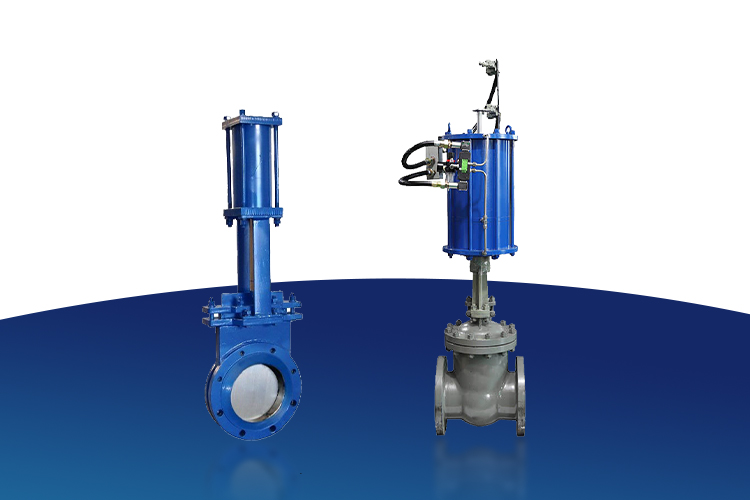

Pneumatic gate valve

Pneumatic gate valve is a kind of valve driven by compressed air,its working principle is through the compressed air to push the multiple groups of combined pneumatic piston movement in the actuator, so as to realize the valve to open and close.

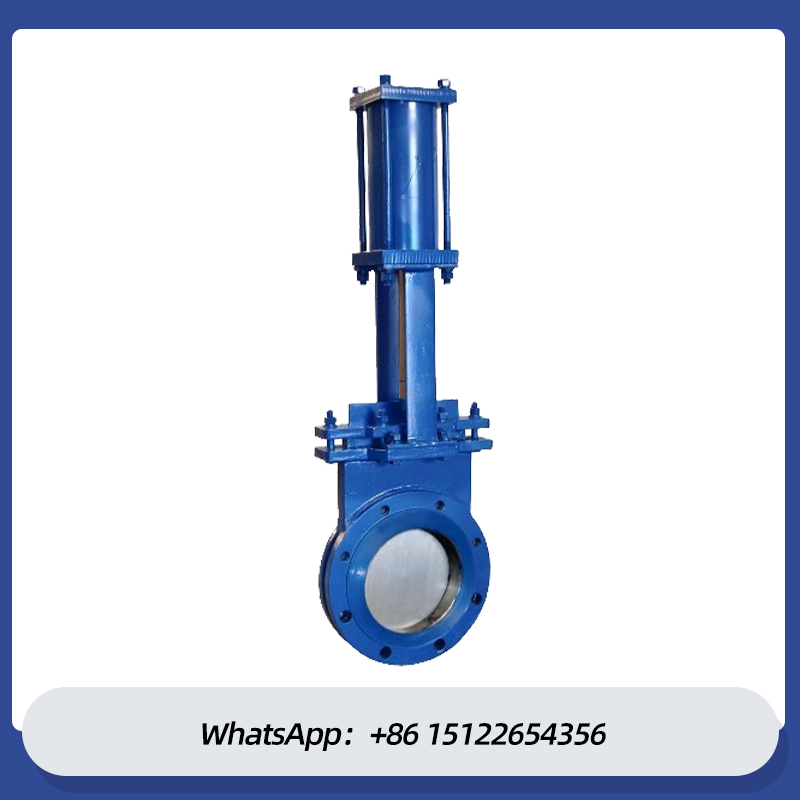

Pneumatic knife gate valve is a valve controlled by a pneumatic device, usually used to cut off the flow of fluid. Its design mainly consists of a blade (also known as a blade) and a valve body. The blade is usually flat shaped, located in the fluid channel, and through the operation of a pneumatic device, the blade can be moved in the direction of the fluid flow, thus opening or closing the fluid channel.

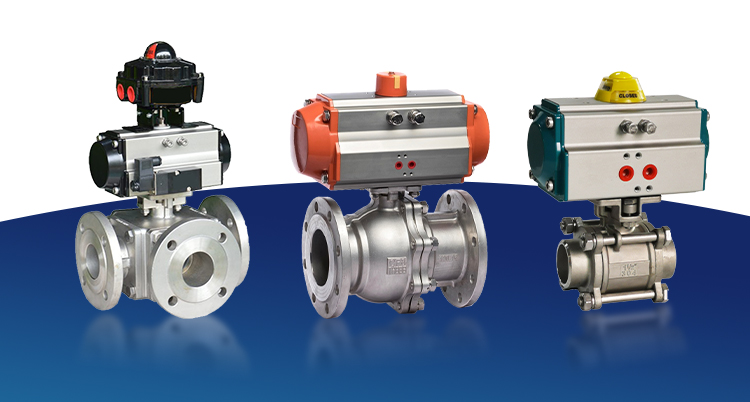

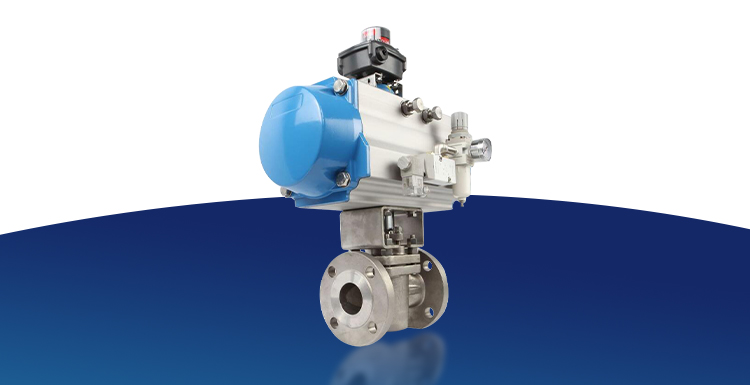

Pneumatic ball valve

Optional function of pneumatic actuator	Double acting, single acting
Solenoid valve voltage	AC110V AC220V AC24V DC24V
Air source pressure	2bar-8bar
Nominal diameter	DN15mm~DN200mm
Nominal pressure	PN1.0Mpa~PN2.5Mpa
Applicable temperature	PTFE: -30~+120℃ PPL:≤350℃ Metal seal :≤ 450℃
Connection mode	Flange type
Valve body material	Cast iron, cast steel, 304, 316, 316L
Valve disc material	304、316、316L
Valve seat lining	PTFE, PPL, metal seal
Applicable medium	Water, petroleum, acids, viscous fluids, slurry media, etc



Pneumatic ball valve is a valve that uses compressed air as a power source and drives the ball to rotate through the pneumatic actuator to control the flow of the medium. It has the characteristics of simple structure, easy operation, reliable sealing, quick opening and closing, etc., and can maintain good performance in various harsh working environments.

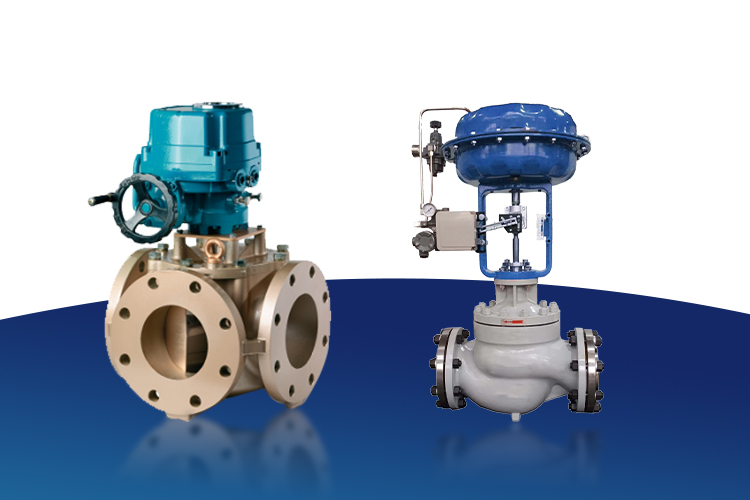

Pneumatic control valve

Pneumatic control valve is one of the commonly used actuators in the field of industrial automation control, mainly used to adjust the flow, pressure, temperature and other parameters of the pipeline medium. It takes compressed air as the power source, and realizes the opening and closing of the valve through the cylinder, slide valve and other mechanisms, so as to achieve the control of the medium quality of the pipeline.

Pneumatic 3 way control valve is a kind of valve that uses compressed air as power source and regulates the pressure, flow rate, temperature and other process parameters of fluid medium (such as gas and liquid) by controlling the opening of the spool. It is usually composed of a multi-spring pneumatic film actuator and a three-way combination (shunt) valve with a cylindrical thin wall window spool, which has the characteristics of compact structure, light weight, sensitive action and accurate flow characteristics.

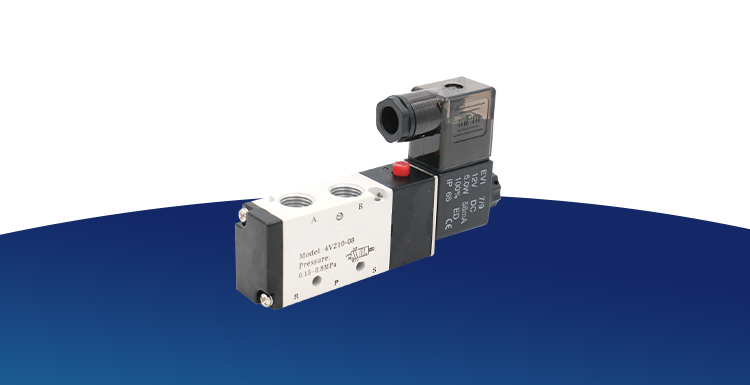

Pneumatic solenoid valve

Solenoid valve is an industrial equipment controlled by electromagnetic, is used to control the automatic basic components of fluid, belongs to the actuator, and the pneumatic solenoid valve is one of them, is by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is usually open, hydraulic oil will enter different drainage tubing, and then through the pressure of the pneumatic solenoid valve oil to promote the cylinder piston, In this way, the current of the electromagnet controlling the pneumatic solenoid valve controls the mechanical movement of the entire solenoid valve.



Pneumatic plug valve

The main advantages of the plug valve are as follows:

1. The plug valve is used for frequent operation, quick and light opening and closing.

2. Plug valve fluid resistance is small.

3. The plug valve has simple structure, relatively small size, light weight and easy maintenance.

4. It is not limited by the installation direction, and the flow direction of the medium can be arbitrary.

5. No vibration, low noise.

A cock, also known as a rotary door, is a quick opening valve. According to its distribution situation, it is divided into straight-through, three-way, four-way and so on. The straight-through type controls the flow of the medium on the straight pipe section, and the three-way and four-way types can be used to distribute the medium and change its flow direction.

The working principle of the cock is that the cock body rotates around the center line of the valve body, and the corresponding relationship between the port on the cock body and the port on both ends of the valve body is used to achieve the purpose of opening and closing.

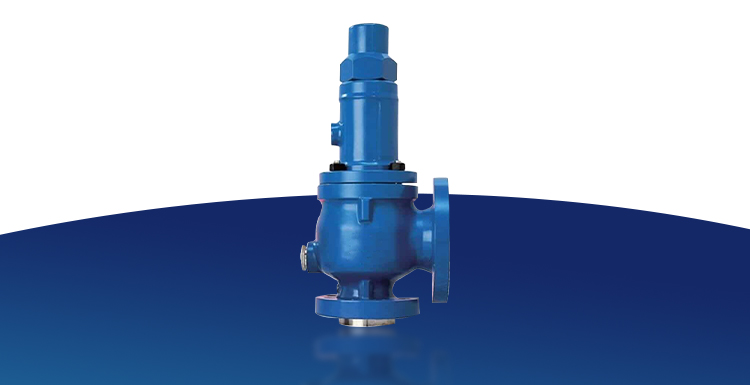

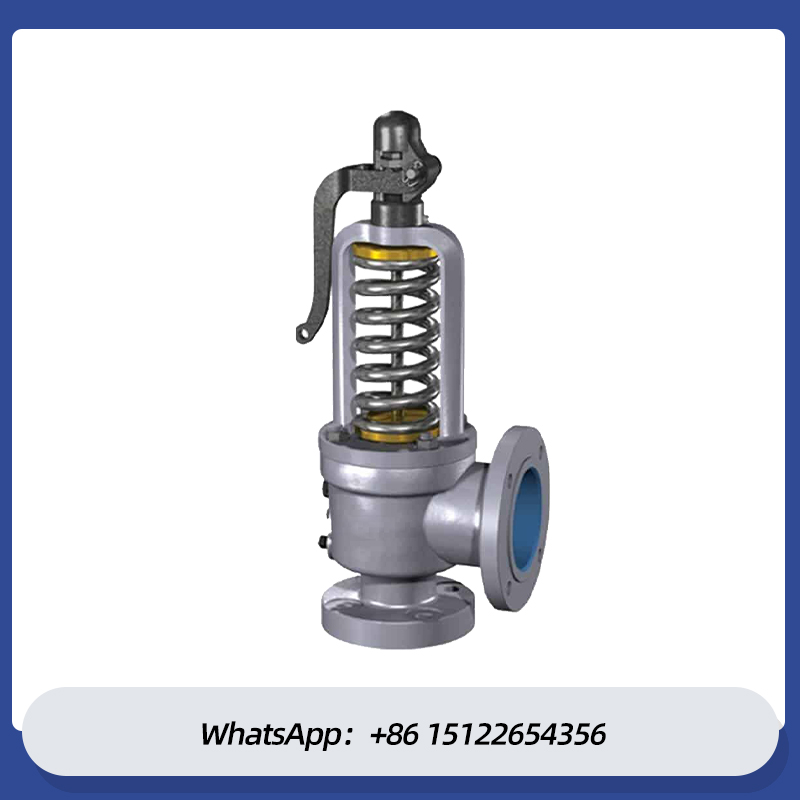

Pneumatic relief valve

Pneumatic relief valve has the advantages of high reliability, remote control, wide range of application, easy maintenance, energy saving and environmental protection, the specific advantages are as follows:

1. high reliability

High reliability pneumatic relief valve uses air pressure as the power source, compared with the traditional mechanical relief valve, its structure is simpler and the action is more reliable. In addition, the reaction speed of the pneumatic relief valve is faster, and it can respond in a very short time, effectively avoiding the occurrence of accidents.

2. Remote control

Easy remote control pneumatic relief valve is usually connected with the control system to control the opening and closing of the valve by adjusting the air pressure. Therefore, by adjusting the parameters in the control system, the purpose of remote control of the pneumatic relief valve can be achieved, which facilitates the maintenance and management of the equipment.

3. wide range of application

Wide range of application pneumatic relief valve is suitable for a variety of different application scenarios, such as chemical, petroleum, pharmaceutical and other fields. It can meet a variety of different working pressure and temperature requirements to ensure the safety of equipment and personnel.

4. Easy maintenance

Easy maintenance Pneumatic relief valve maintenance is relatively simple. When the valve fails, it can be easily removed and replaced. In addition, the pneumatic relief valve has a long life and can maintain stable performance over a long period of time.

5. energy saving and environmental protection

Energy saving and environmental protection pneumatic relief valve uses air pressure as the power source, compared with the traditional hydraulic system, its energy consumption is lower, in line with the concept of energy saving and environmental protection. In addition, pneumatic relief valves emit less emissions and have less impact on the environment.

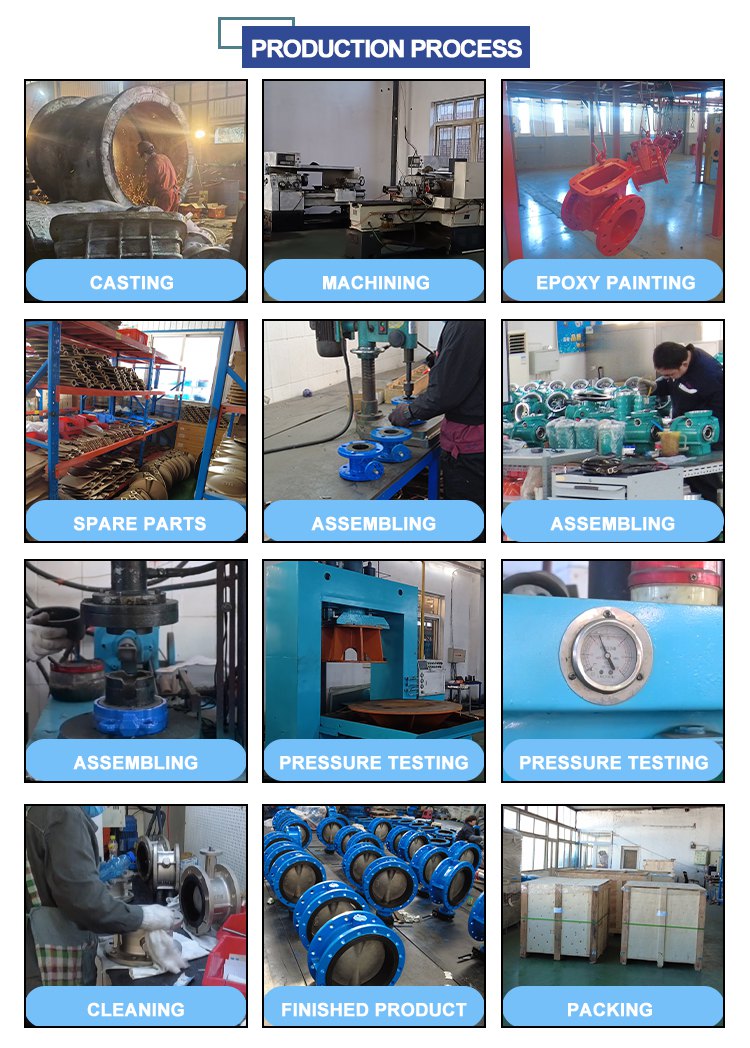

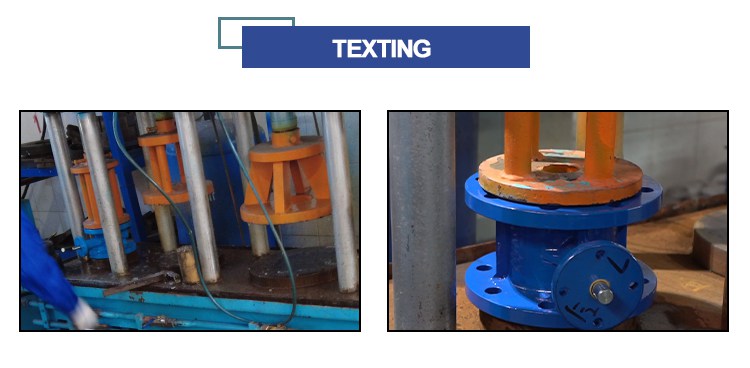

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes.

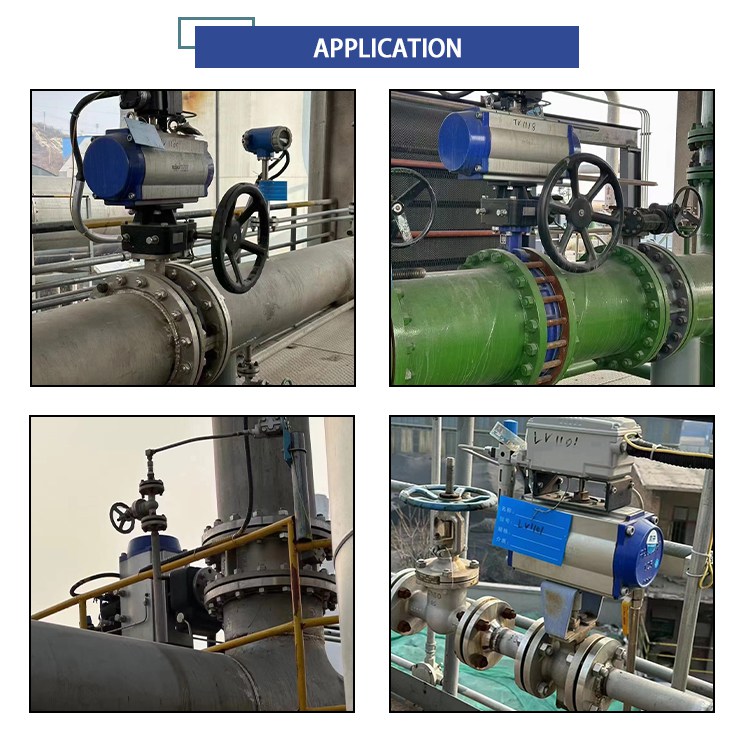

Pneumatic valve is a switch device driven by compressed air as a power source. It has the characteristics of easy operation and fast response, so it is widely used in many fields.

1. Petrochemical industry

In the petrochemical industry, pneumatic valves are widely used to control the flow direction and flow rate of pipeline intermediaries. They can withstand high temperature and high pressure environment, adapt to the characteristics of various corrosive media, to ensure the smooth progress of the process.

2. Power industry

In the process of power generation and transmission, the reliability and stability of pneumatic valves are crucial. They can be used to control key parts such as steam system and boiler feed water system to ensure the safe operation of power system.

3. Metallurgical industry

In the process of metallurgical production, the flow of various gases needs to be precisely controlled, and pneumatic valves are ideal for their flexibility and accuracy. They play a key role in steelmaking, continuous casting and other equipment.

4. Pharmaceutical industry

Pharmaceutical production has very high hygiene and environmental requirements, and pneumatic valves can meet these requirements and are used in the control system of clean pipelines and in the automated operation of fermenters and other equipment.

5. environmental protection water treatment

In the water treatment system, the pneumatic valve can be used to automatically control the direction of water flow and water quality regulation. In the sewage treatment process, it is used to achieve important functions such as sludge discharge and liquid mixing.



Other application areas also include civil related fields such as food processing industry and pneumatic conveying industry.
